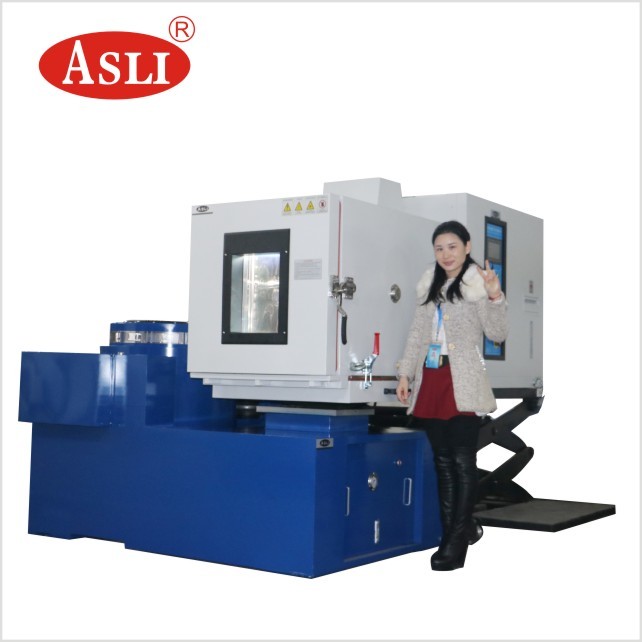

Temperature Humidity and Vibration Integrated Test Chamber
1 juego
MOQ
negotiable
Precio
CaracteristicasGaleríaDescripción de productoPida una cita
Caracteristicas
Especificaciones
Dimensión interna:personalizado según el tamaño de la muestra
Interfaz de comunicación:LAN, USB
Rango de temperatura:-60~150℃
Rango de humedad:20% ~ 98% H.R.
dirección de vibración:vibración vertical+horizontal
Solicitud:PCB, Semiconductores, Piezas de automoción, productos electrónicos
Información básica
Lugar de origen:Porcelana
Nombre de la marca:ASLI
Certificación:CE, ISO,SGS, BV
Número de modelo:THV-Volumen-E
Pago y Envío Términos
Detalles de empaquetado:Exportar estuche estándar de madera contrachapada
Tiempo de entrega:45~50 días hábiles después del depósito
Condiciones de pago:T/T, Western Union, carta de crédito
Capacidad de la fuente:100 conjuntos por trimestre
Galería
Temperature Humidity and Vibration Integrated Test Chamber
Descripción de producto
Product Description
USB, LAN, RS-232&RS-485 communication interface.
with CE certification
Touch screen controller
Large LCD touch screen, easy operation. Independent control systems: Vibration control system, constant temperature control system and constant humidity control system. Mobile orbit design, easy to operate combined test. Safety device

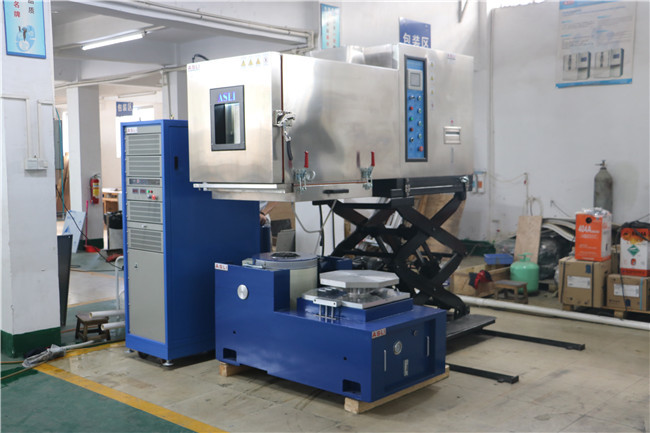

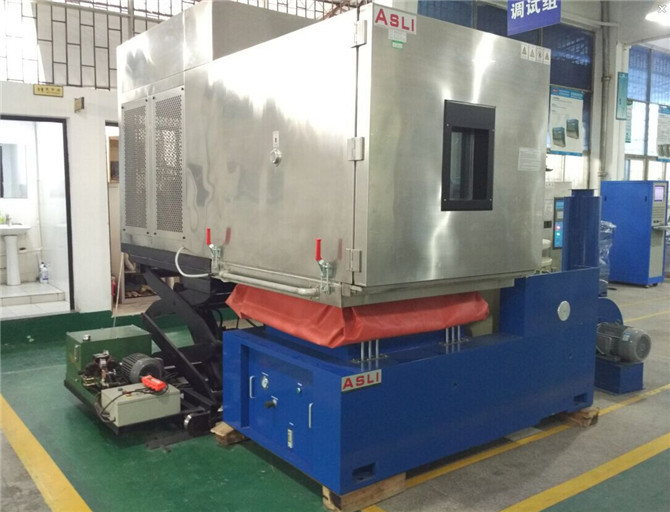

Temperature Humidity And Vibration Integrated Test Chamber matched with appropriate vibration test bench to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; extensively applied in aviation and aerospace, shipping, electronics, automobile car, telecommunications, Industry.
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
Indication Resolution/
Distribution uniformity
of temperature and humidity
0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.
Control Accuracy of
temperature and humidity
±0.5degree C; ±2.5% R.H.
Temperature Rising/
Falling Velocity
Temperature rising approx. 0.1~3.0degree C/min ;
temperature falling approx. 0.1~1.0degree C/min;
( Faster temperature rate is optional)
Internal and External Material
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System
Wind cooling or water cooling; single segment compressor for -40℃, double segment compressor for -70℃
Protection Devices
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories
Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier

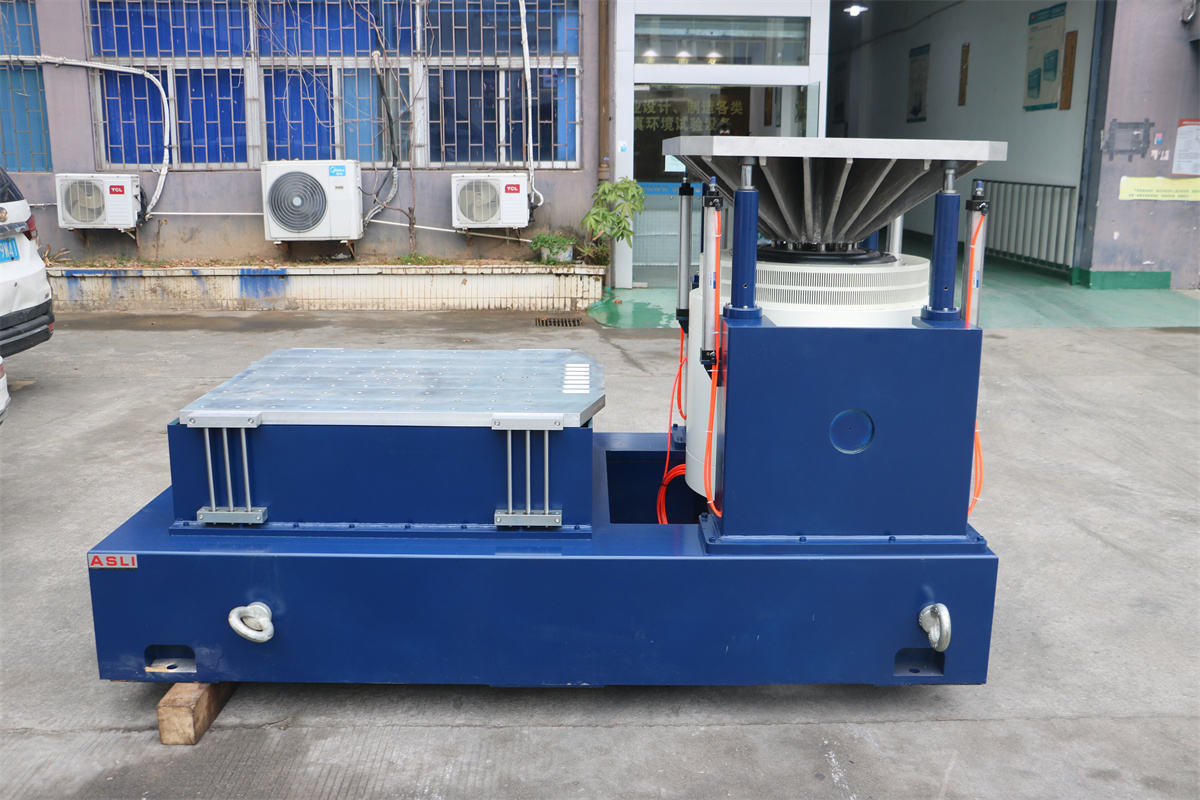

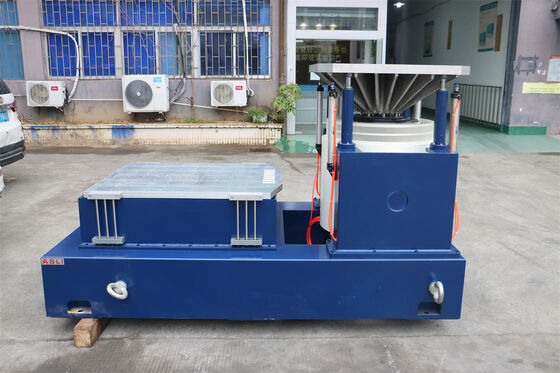

For High Frequency Vibration Shaker
Model
Rated Sine
Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of Moving coil (mm)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
Temperature Humidity And Vibration Integrated Test Chamber Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. Original refrigerating compressor unit and its main accessories are international famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Temperature Humidity Vibration Combined Tester for Auto Parts Comprehensive Test is our star products , and we had obtained the CE certification for this machine .
FAQ
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DDP, DAP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the fixtures.
If you need more information about Temperature Humidity And Vibration Integrated Test Chamber, please don't hesitate to contact me.
